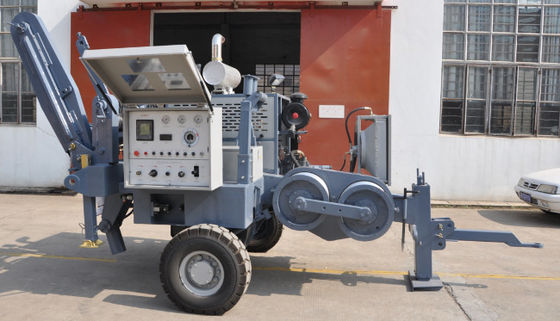

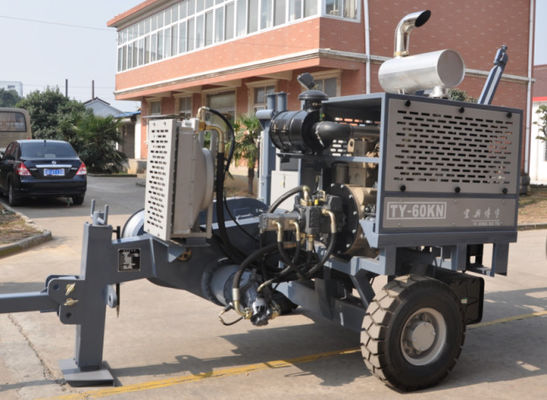

Conductor Line Stringing Equipment

Conductor Line Stringing Equipment
Conductor Line Stringing Equipment

बड़ी छवि :  Conductor Line Stringing Equipment

उत्पाद विवरण:

Place of Origin: China
ब्रांड नाम: Boyu
प्रमाणन: ISO9001
Model Number: TY60-3

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1set
मूल्य: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price terms.: FOB(Shanghai) or CIF (assigned port).
विस्तृत उत्पाद विवरण
हाई लाइट:

conductor stringing equipment


cable pulling equipment

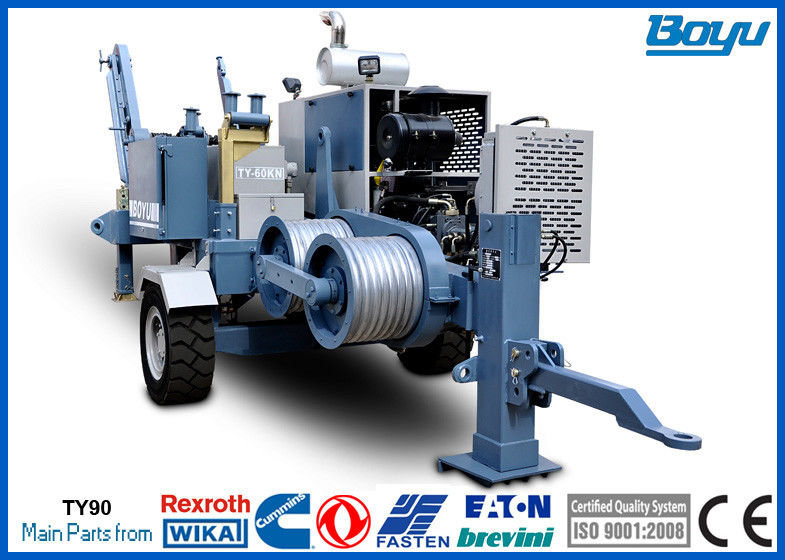

TY60 60kN 6Tons 220kv Conductor Line Stringing Equipment Cummins Diesel Engine Rexroth Motor
Quick details:

  1. Main pump and motor: German Rexroth
  2. Tail bracket hoisting motor: American Eton
  3. Conductor Line Stringing Equipment
  4. Hydraulic Puller
  5. Max pull: 60kN 6Tons
  6. Diesel: Cummins 77kw 103hp
  7. Max rope diameter: 18mm
  8. Max reel size: 1400mm


Main configuration

  1. Main pump: German Rexroth
  2. Main motor speed reducer: German Rexroth
  3. Engine: Cummins
  4. Tail bracket hoisting motor: American Eton
  5. Hydraulic meter: German


  1. Hydraulic dynamometer with set-point and automatic control of maximum pull
  2. Hydraulic oil cooling system
  3. Control instruments for hydraulic system and diesel engine
  4. On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
  5. Hydraulic front stabilizer
  6. Grounding connection point


Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.

  1. Max intermittent pull: 60kN
  2. Max continuous pull: 50kN
  3. Speed at max pull: 2.5km/h
  4. Max speed: 5km/h
  5. Pull at max speed: 25kN


  1. Diesel 77kw 103hp
  2. Cooling system water
  3. Electrical system 24V


  1. Bull-wheel diameter: 450mm
  2. Groove number: 7
  3. Max rope diameter : 18mm
  4. Max diameter of rope reel: 1400mm
  5. Total weight: 3500kg
  6. Overall dimension (length*width*height): 3800×2100×2300mm

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Additional Devices

  1. Lighting system for the trailer
  2. Hydraulic brake system for the trailer
  3. Extra rollers for an additional pilot rope
  4. Hydraulic rope clamp for reel change operations
  5. Extra shaft
  6. Electronic pull and speed recorder

Conductor Line Stringing Equipment 0

Customers visiting
Conductor Line Stringing Equipment 1Conductor Line Stringing Equipment 2

More pictures
Conductor Line Stringing Equipment 3

Conductor Line Stringing Equipment 4

Company Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

  1. Transmission line stringing equipment and accessories and tools.
  2. Nonmetallic galvanized the production equipment (Achieved high-tech products)
  3. Numerical control machine
  4. Low voltage no power-arc furnace compensation system

We produce 40~60sets of stringing equipment each month and all kinds of accessories.

Established in 1997, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

Conductor Line Stringing Equipment 5Conductor Line Stringing Equipment 6
Container loading
Conductor Line Stringing Equipment 7
Conductor Line Stringing Equipment 8

TY60 60kN 6Tons 220kv Conductor Line Stringing Equipment Cummins Diesel Engine Rexroth Motor
