| OEM: | available | After sales service: | available |
|---|---|---|---|
| Rated load: | 30kn | Drum diameter: | 1200mm |
| Weight: | 170kg | ||
| हाई लाइट: | transmission line construction equipment,overhead transmission line stringing equipment |
||

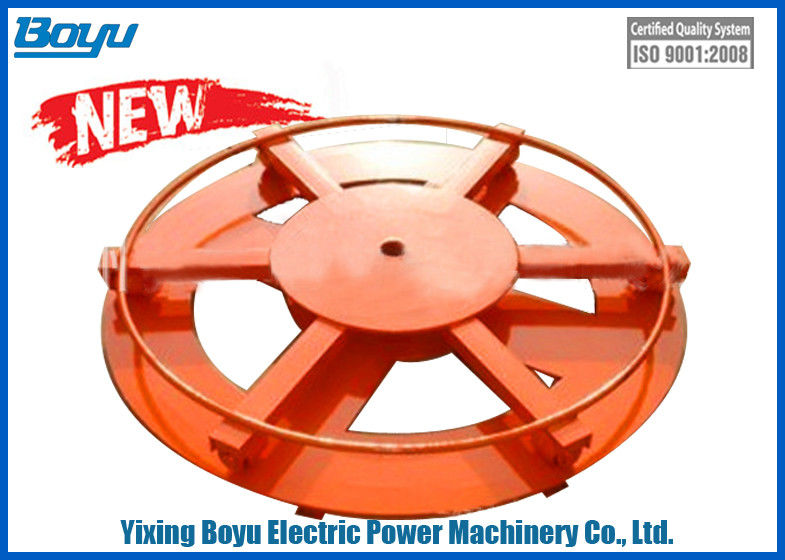

Drum Upright Turntable Transmission Line Stringing Tools For Tension Stringing Conductors
Quick details:
1. Transmission Line Stringing Tools
2. Drum Upright Turntable
3. Weight: 50,60,170kg
4. Rated Load: 20~50kN
5. Drum Max Diameter: 1200mm
6. Boyu Brand
Description:
The drum upright turntable are made of welded steel with protective coating.It’s suitable for tension stringing of conductors and ground cables, while putting the drum in the six-equal rolling disk.There are two pulleys for each set with a rolling bearing in the middle.
Specification:
|
Model |
Rated load (KN) |
Drum diameter (mm) |
Weight (kg) |
|
TYWFJ20 |
20 |
800 |
50 |
|
TYWFJ30 |
30 |
1000 |
60 |
|
TYWFJ50 |
50 |
1200 |
170 |
